Product Description：

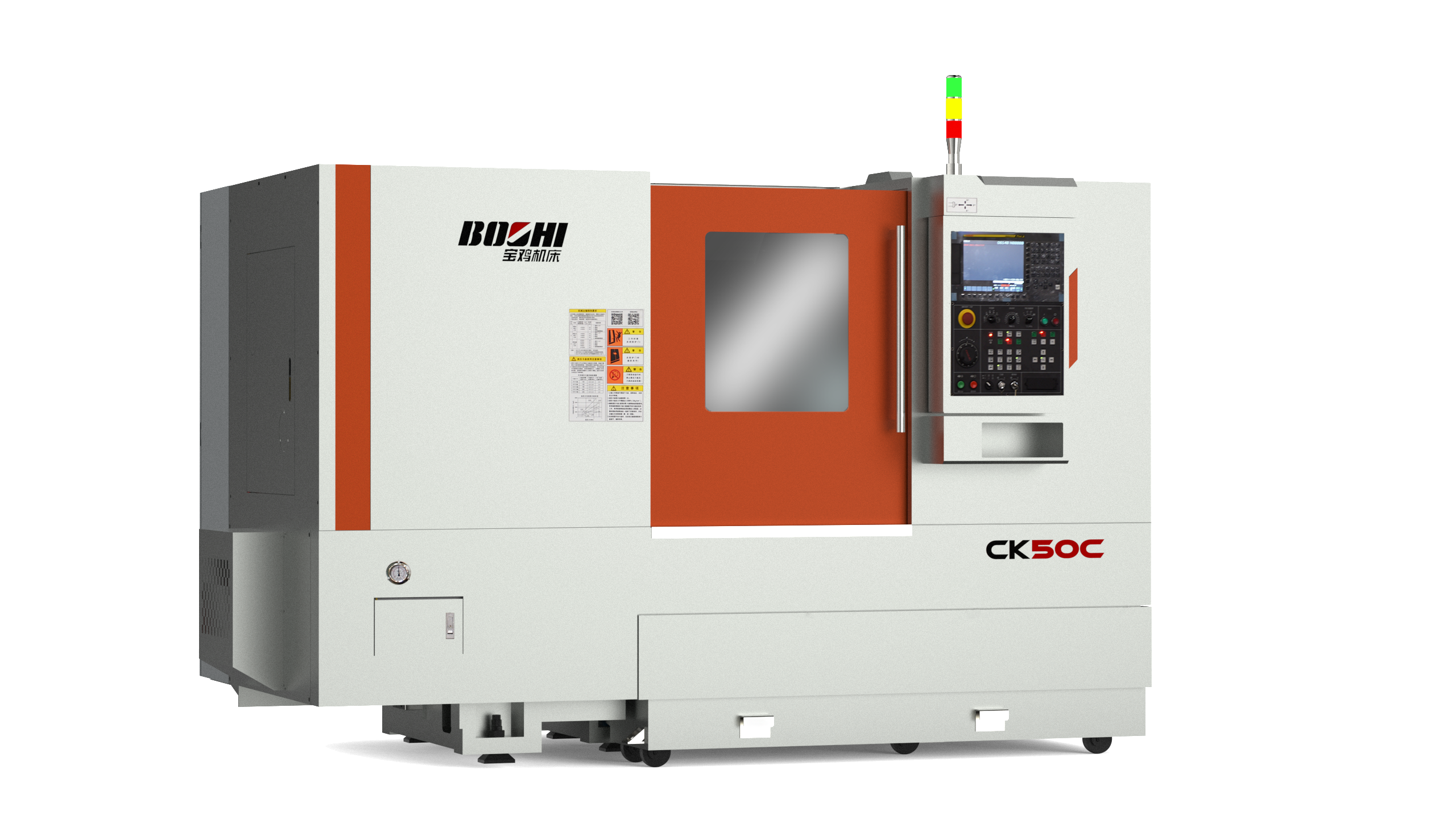

The CK50C CNC lathe has undergone multiple iterations and upgrades, integrating advanced technologies. Its structural design and turning performance have been market-proven, with wide applications in automotive, energy, construction machinery, and mold industries. The entire machine undergoes finite element analysis and dynamic-static simulation; the rational structural strength and reinforcing ribs ensure high rigidity and stability. To prevent post-processing deformation, all castings are annealed to eliminate internal stress. Strict control over the entire assembly process ensures key accuracies exceed national standards by 30%–50%.


Technical Specifications：

Capacity











Item

Unit

CK50C/750

CK50C/1000

Max.swing over bed/saddle

Mm

Φ570/Φ390

Φ520/Φ390

Max.turning length

Mm

750

1000

Max.turning diameter

Mm

Φ370

Max.bar diameter

Mm

Φ51

Chuck size

Mm

Φ210

Spindle











Spindle nose

GB5900.1

A2-8

Spindle taper



1:20

Spindle

Mm

Φ62

Spindle bearing diameter (front/rear)

Mm

Φ100/Φ90

Spindle speed

r/min

40—4000（CTB MOTOR）

30-3000（GSK MOTOR）

Main motor power (CTB or GSK motor)

kW

15、11/15

Tailstock



Sleeve diameter/travel

Mm

Φ90/100

Center taper (standard/live spindle)

MT No.

5/4

Saddle













Tilt angle

DEG

45°

X/Z axis travel

Mm

210/780

210/1010


X/Z rapid traverse speed (domestic linear guide)



m/min

16/24


X/Z rapid traverse speed (imported linear guide)





16/24


X/Z axis servo motor torque



Nm

11/20


X/Z axis ball screw diameter



Mm

Φ32/Φ40

Turret




Number of tool positions





8 or 12


Tool size (turning/boring)



Mm

25×25/Φ40

Others







Power supply capacity

kVA

35

Dimensions (L×W×H)

Mm

3290×1990×1880

3790×1850×2050

Total weight

Kg

4800

5300

Max. workpiece weight (two-end clamping)

Kg

550（8?chuck）
